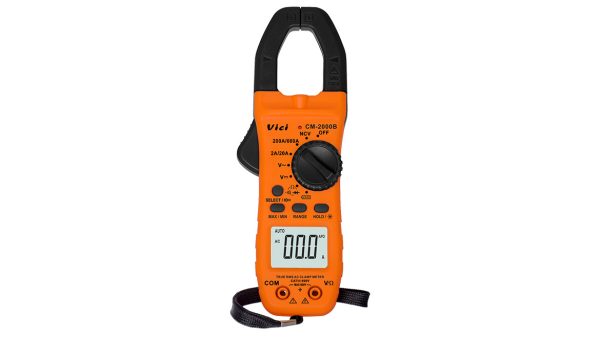

CM-2000B Dijital Pensampermetre
-
CM-2000B 28mm clamp open, Max 800A, True RMS, NCV, Battery tests, Backlight, Clamp lighting function.
CM-2000B clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, battery, diode andcontinuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power offabd alarm functions. 2000 digits display
153.12.01.04
|
Technical Data: |
|
|
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
+/- (0.5%+5) |
|
ACV |
2V/20V/200V/600V |
+/- (1.0%+5) |
|
ACA |
2A/20A/200A/600A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+1) |
|
Technical Data: |
|
|
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
+/- (0.5%+5) |
|
ACV |
2V/20V/200V/600V |
+/- (1.0%+5) |
|
ACA |
2A/20A/200A/600A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+1) |
|
Special Function: |
|
|
|
Model |
CM-2000B |
|
|
NCV |
YES |
|
|
TRMS |
YES |
|
|
Battery voltage test |
20V |
|
|
Max./Min. |
YES |
|
|
Diode test |
YES |
|
|
Continuity alarm |
Less than 50 ohm |
|
|
Low battery indication |
Approx. less than2.4 V |
|
|
Data hold |
YES |
|
|
Auto power off |
Approx. 15 minutes. |
|
|
Function protection |
YES |
|
|
Clamp light display |
YES |
|
|
Backlight display |
YES |
|
|
Input impedance |
10M ohm |
|
|
Sampling rate |
3 times/second |
|
|
AC frequency response |
Current (50~60)Hz, Voltage (50~400)Hz |
|
|
Operation method |
Manual or auto range |
|
|
Max. display |
1999 |
|
|
Clamp open |
28mm |
|
|
Power source |
3V (2pcs #7 batteries) |
|
Industrial areas
Emitter
Receiver
RJ11 Connector Clip Line
RJ45 Connector Cable
Earphone
Cloth Bag
User Manual
Color Box
9V Batteries
– Garanti süresi, malın teslim tarihinden itibaren başlar ve garanti süresi 2 yıldır.
CM-2000B 28mm clamp open, Max 800A, True RMS, NCV, Battery tests, Backlight, Clamp lighting function.
CM-2000B clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, battery, diode andcontinuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power offabd alarm functions. 2000 digits display
