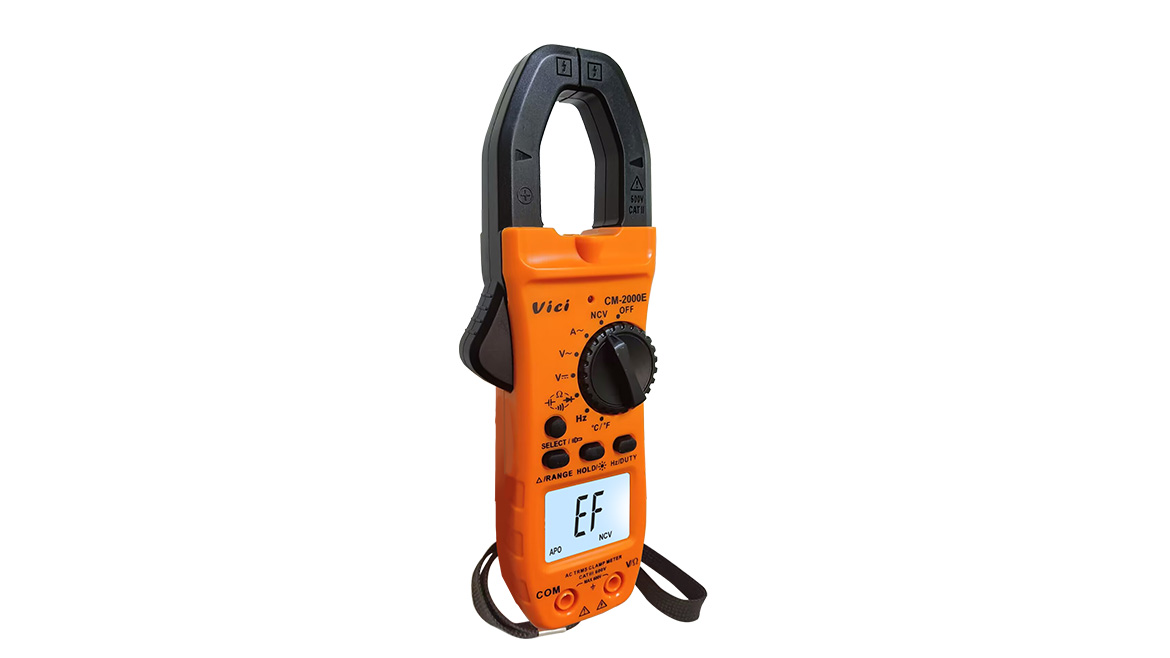

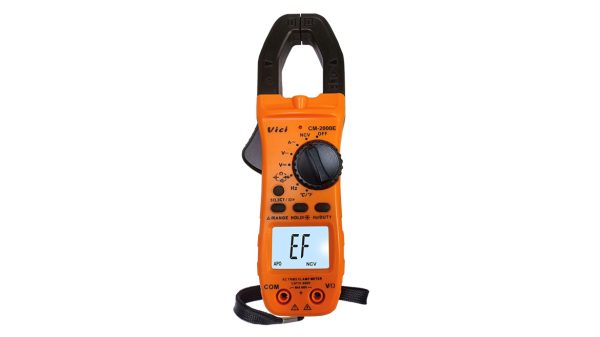

CM-2000E 4000 Digits AC Clamp Meter
-
1. Clamp open 28mm
2. Portable design, easy operation
3. Clamp light and backlight display
4. CE standard, improving test safety
5. REL TRMS measurement, Data hold
6. Non-contact voltage testing with visible alarm
7. Full function protection, strong anti-interferential performance
153.12.01.06
Technical Data:
Basic function Range Accuracy
DCV 400mV/4V/40V/400V/600V ±(0.5%+5)
ACV 4V/40V/400V/600V ±(1.0%+5)
ACA 4A/40A/400A ±(2.0%+5)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+3)
Capacitance 4nF/40nF/400nF/4uF/40uF/400uF/4mF ±(2.5%+5)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+5)
Temperature -40℃ to 1000℃,
-40℉ to 1832℉ ±(1.0%+5)
Special Function:
Model CM-2000E
Max. display 4000
Duty-cycle test √
NCV √
Diode test √
Continuity alarm Less than 50Ω
Low battery indication Less than 2.4 V
Data hold √
Auto power off Approx. 15minutes
Function protection √
Clamp light display √
Backlight display √
Input impedance 10MΩ
Sampling rate 3 times/second
AC frequency response Current (40 to 1000) Hz, Voltage (40 to 2000) Hz
Operation method Manual or auto range
Clamp open 28mm
Power source 3V (2pcs #7 batteries)
General Characteristic:
Meter color Orange and Black
Meter weight 200g (including the batteries)
Standard accessory Test leads, battery, English manual, TP01temperature probe
Standard package Gift box
Meter size 185*65*32mm
Standard qty per carton 40pcs
G.W. per carton 15KG
Carton size 41.5x28x46.5CM
Industrial areas
Emitter
Receiver
RJ11 Connector Clip Line
RJ45 Connector Cable
Earphone
Cloth Bag
User Manual
Color Box
9V Batteries
– Garanti süresi, malın teslim tarihinden itibaren başlar ve garanti süresi 2 yıldır.
1. Clamp open 28mm
2. Portable design, easy operation
3. Clamp light and backlight display
4. CE standard, improving test safety
5. REL TRMS measurement, Data hold
6. Non-contact voltage testing with visible alarm
7. Full function protection, strong anti-interferential performance
